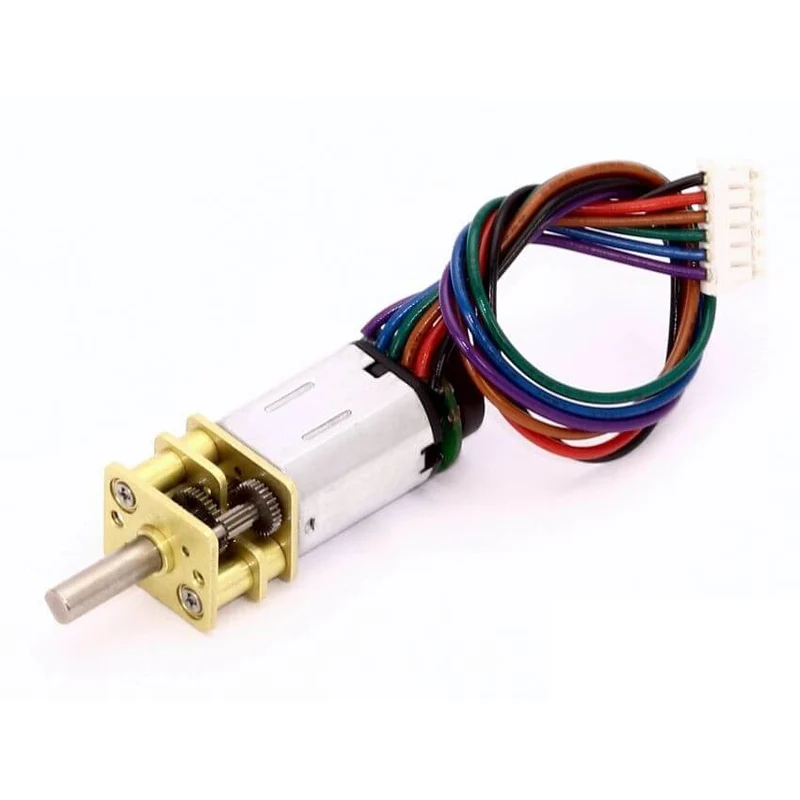

JSumo 6V 1580RPM Micro Metal Gearmotor w/ Encoder
Détails du produit
- JSumo 6V 1580RPM Micro Metal Gearmotor w/ Encoder
- Gear Ratio: 15:1
- Offers a rotation speed of 1580 RPM
- Comes with 2 channel encoder attached
- Provides D-shape output shaft
- Operating range: 3-9 V
The JSumo 6V 1580RPM Micro Metal Gearmotor w/ Encoder is similar to Pololu brand's popular Micro Metal HP series but produces more power and comes with 2 channel encoder attached.
The size of this micro-metal motor with a rotation speed of 1580 RPM and a gear ratio of 15:1 is 12 x 34 mm. For ease of assembly and power transfer, the D-shape output shaft is 9.2 mm long and 3 mm in diameter. The motor's operating range is 3-9 V. The recommended operating voltage is 6 V.
